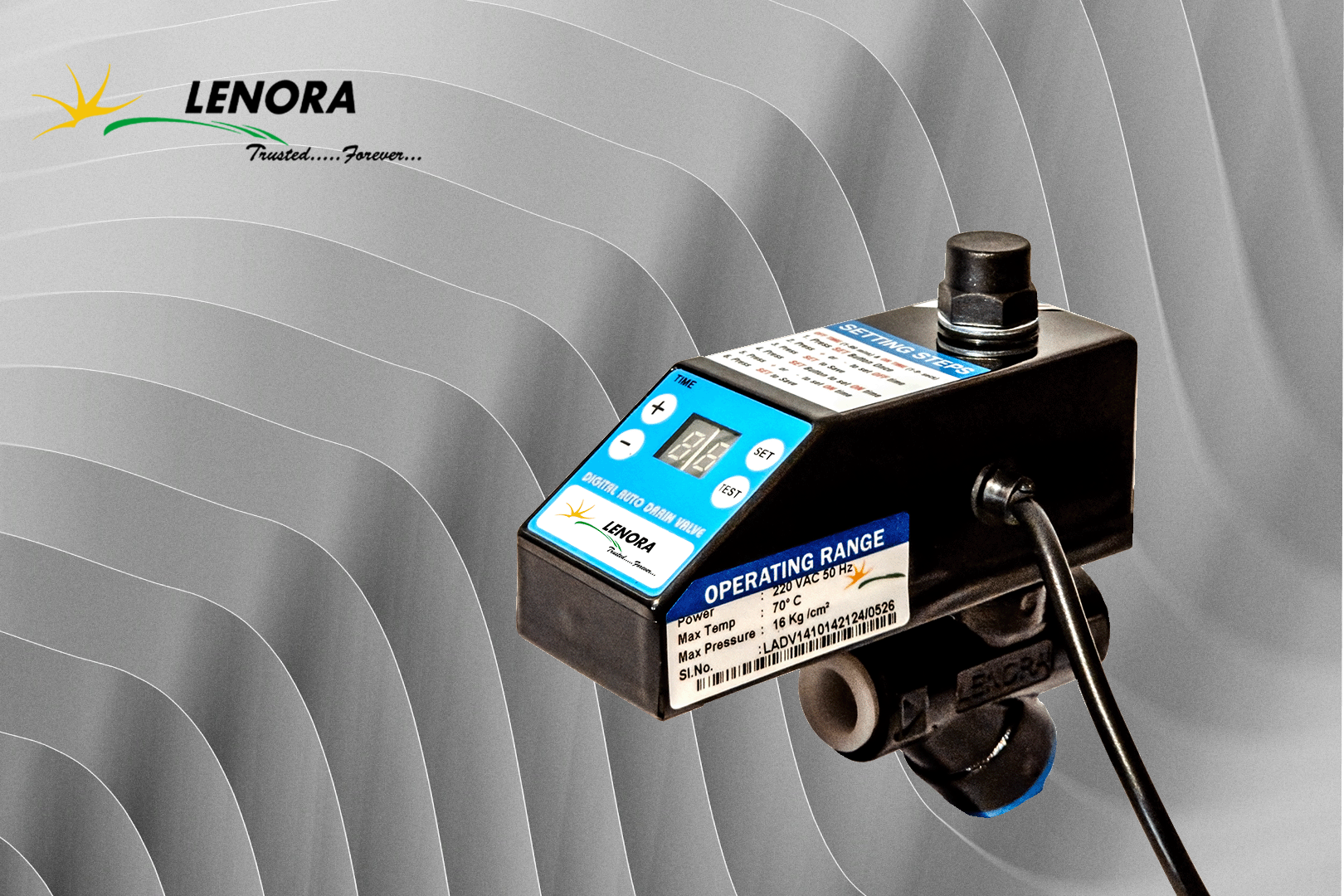

The entrainment of condensate along with air flow in compressed air systems to end-use applications is extremely harmful if the system is not drained regularly. The ideal solution for regular, effective draining of oil and moisture from a Compressed Air System is the Lenora Auto Drain Valve (LADV).
The Problem
Compressed air systems inevitably produce condensate — a mixture of water, oil, and dust. Without regular drainage, this condensate is carried downstream into pneumatic valves, actuators, and production tooling, causing corrosion, contamination, and premature failure.
Manual draining is unreliable. Float-type drains, drain the condensate but is prone to frequent repairs due to dust and debris. Neither solution gives you the precision control that a modern compressed air system demands.
The Lenora Solution
The LADV Series uses an advanced microprocessor-based timer controller to open the drain valve for a precise, adjustable duration at a configurable interval — draining condensate periodically.
Microprocessor-based controller for accurate, consistent drain cycle functioning. No drift, no wear-out of mechanical timing components.
Digital display for viewing the time set and time remaining for draining. Instant visual confirmation of operating parameters at a glance.
Adjustable ON time (1–9 seconds) and OFF time (1–99 minutes) to match your system's condensate generation rate precisely.
1–99 hours OFF time available upon request.
Precise digital setting eliminates the guesswork of manual draining intervals. Set once, and the microprocessor maintains exact timing indefinitely.
Virgin ABS enclosure for the timer. Aluminium diecast valve body. Every unit tested at Lenora's in-house facility before dispatch.
Low discharge auto drain valve for smaller capacity compressed air systems. Available in ½" BSP connection. Ideal for receivers up to 500 litres.
Tap for specs →
Valve Specifications
| Max. Pressure | 16 kg/cm² |
| Valve Type | 2 Way Direct |
| Size | ½" BSP (F) |
| Body Material | Aluminium Pressure Die Cast |
| Orifice | 2.5 mm |
| Pilot Air | Not required |

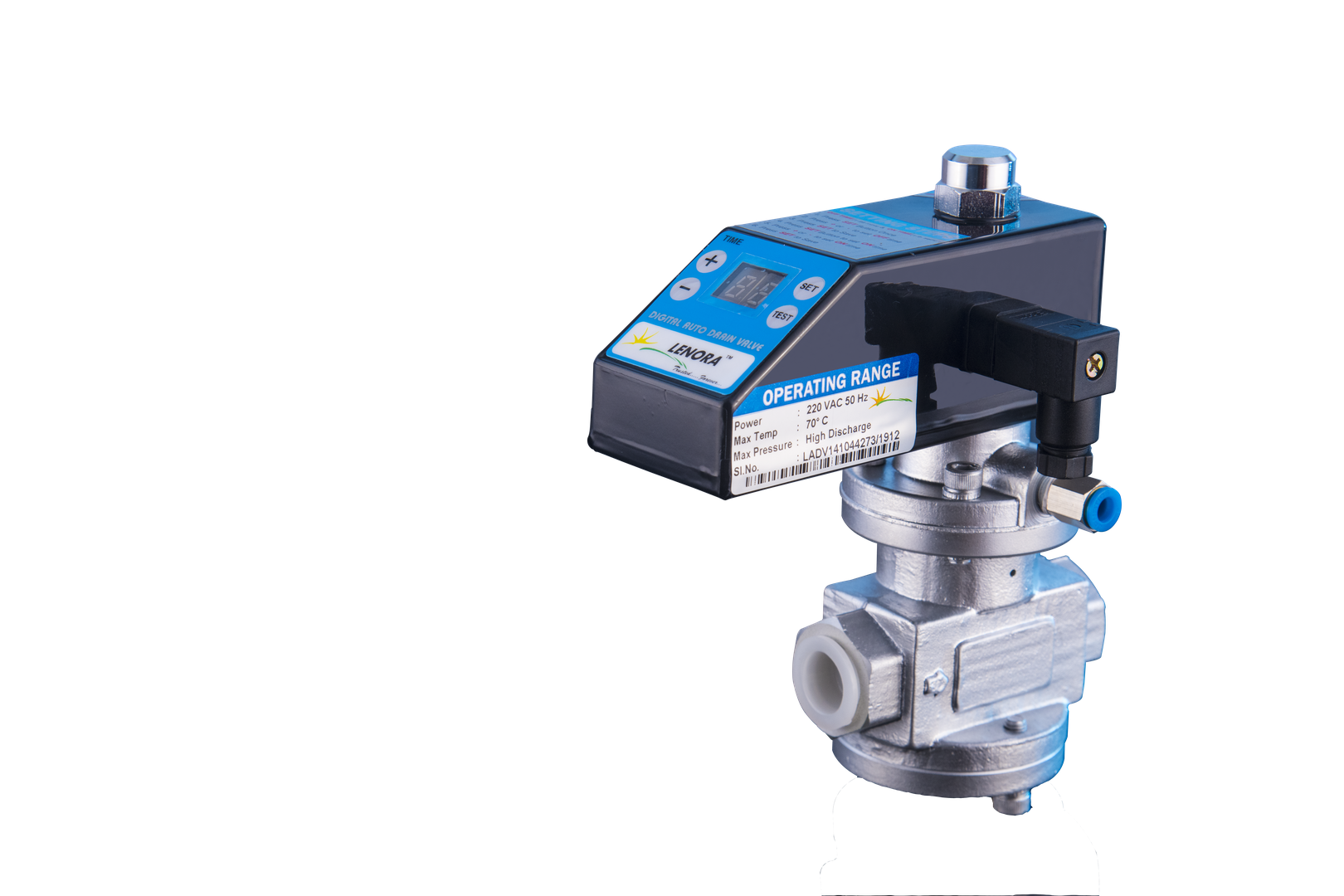

High discharge digital auto drain valve for higher capacity systems. Pilot air operated design for reliable large-volume condensate discharge.
Tap for specs →
Valve Specifications
| Max. Pressure | 16 kg/cm² |
| Valve Type | 2 Way Direct |
| Size | ½" BSP (F) |
| Body Material | Aluminium Die Cast |
| Orifice | 12 mm |
| Pilot Air | Required |

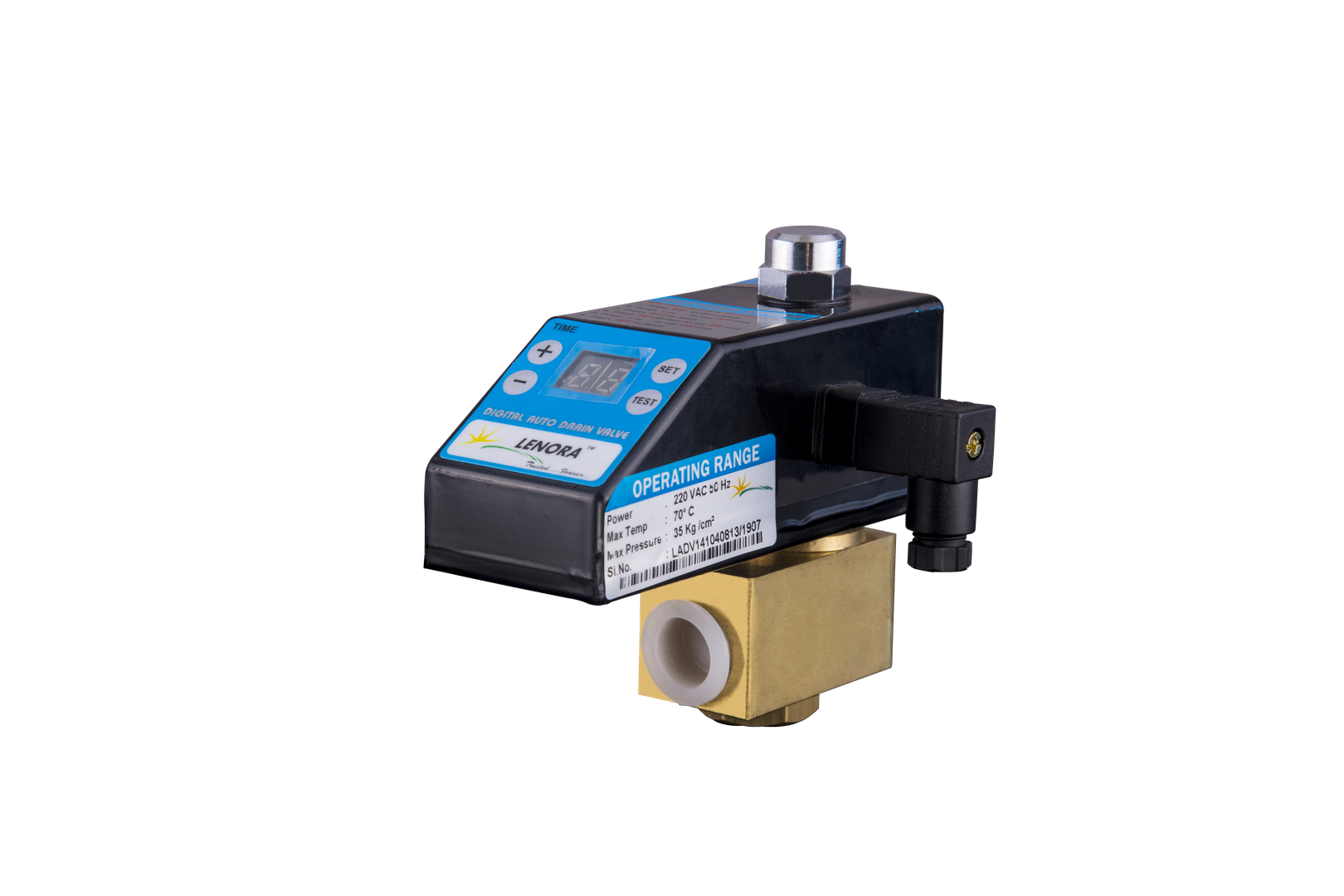

High pressure digital auto drain valve rated for pressures up to 40 kg/cm². Designed for high-pressure compressed air and gas systems.
Tap for specs →
Valve Specifications
| Max. Pressure | 40 kg/cm² |
| Valve Type | 2 Way Direct |
| Size | ½" BSP (F) |
| Body Material | Brass |
| Orifice | 1.8 mm |
| Pilot Air | Not required |

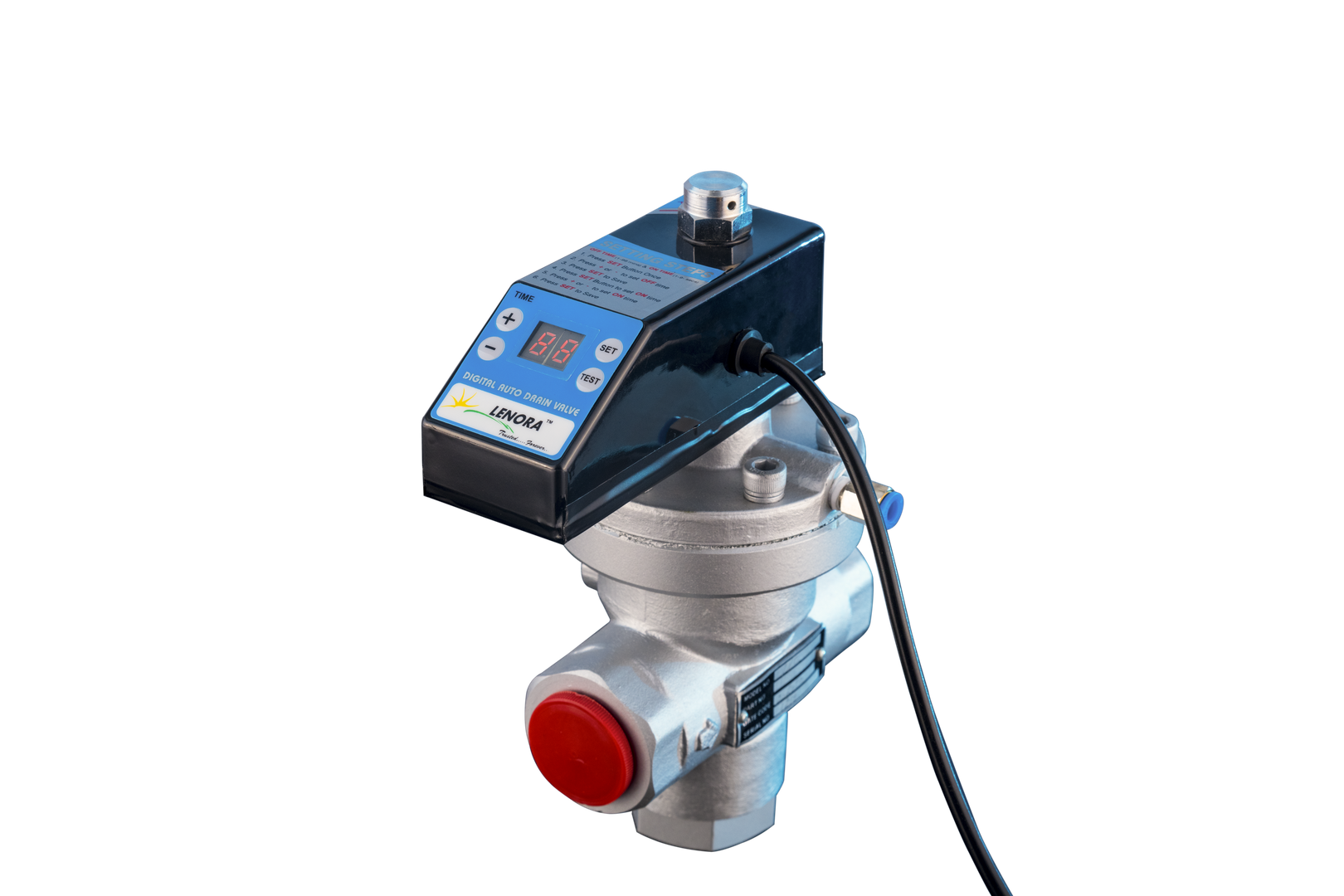

High discharge pilot-operated digital auto drain valve designed for receiver tanks above 3,000 litres capacity. High flow-rate drain valve body.
Tap for specs →
Valve Specifications
| Max. Pressure | 16 kg/cm² |
| Valve Type | 2 Way Direct |
| Size | 1" BSP (F) |
| Body Material | Aluminium Die Cast |
| Orifice | 25 mm |
| Pilot Air | Required |

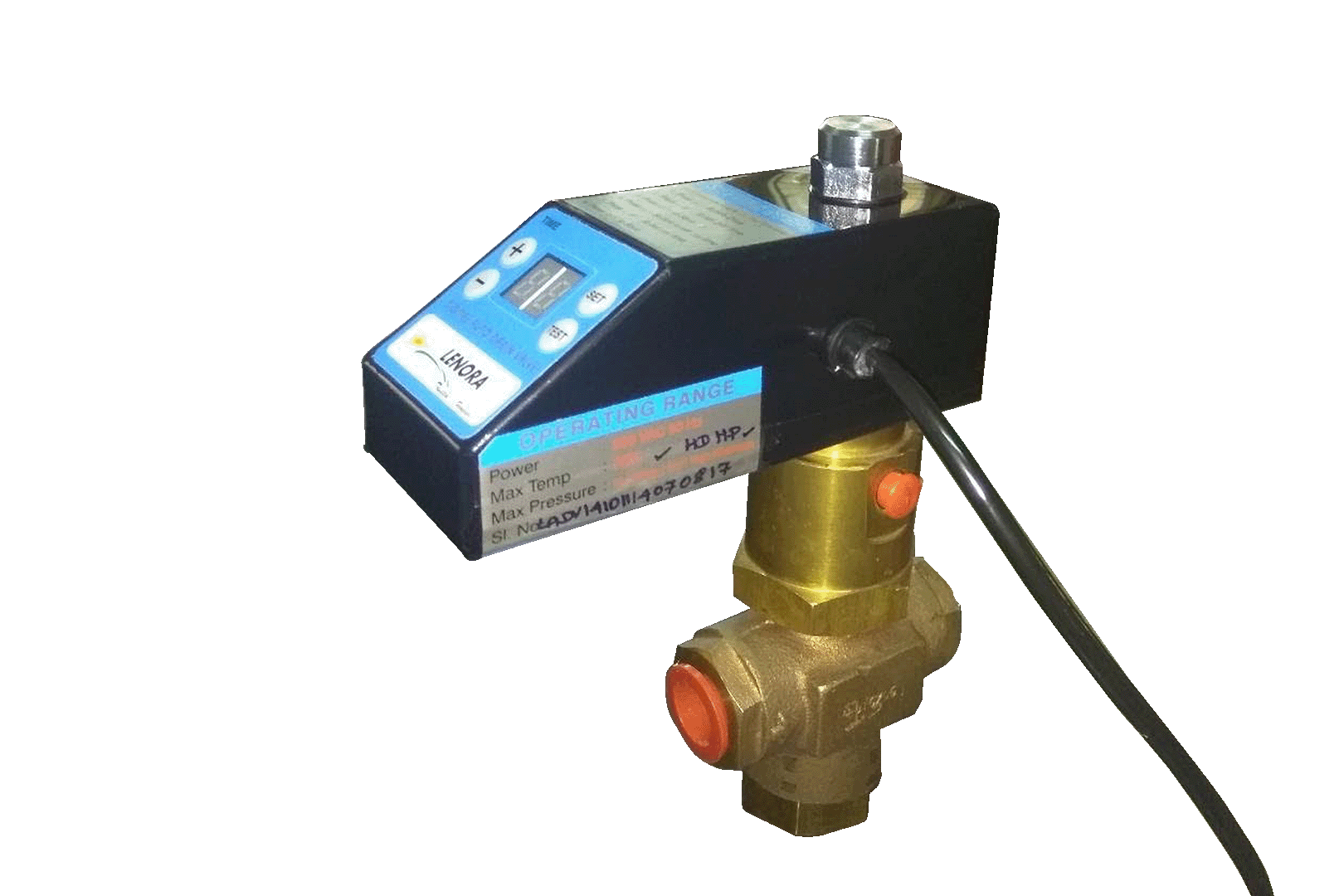

High pressure, high discharge digital auto drain valve. Pilot air operated. Combines LADV-3 pressure rating with LADV-2 discharge capacity.
Tap for specs →
Valve Specifications
| Max. Pressure | 40 kg/cm² |
| Valve Type | 2 Way Direct |
| Size | ½" BSP (F) |
| Body Material | Brass |
| Orifice | 6 mm |
| Pilot Air | Required |
Timer Specifications — All Models
| Type | Advanced Microprocessor Based Timer Controller |
| Interval Time | 1–99 Minutes (Adjustable) |
| Drain Time | 1–9 Seconds (Adjustable) |
| Supply Voltage | 220V AC, 110V AC, 24V DC |
| Power Consumption | 10 Watts |
| Max. Temperature | 70°C |
| Enclosure Material | Virgin ABS |
| Manual Test Switch | Provided |
